AKW Digipump M20 with 90mm Diameter Chrome Waste

• 22mm inlet and 22mm outlet connectors - Compatible with PW50 (22mm) pumped waste


• Additional flow sensor kits are available - Required for use with dual feed showers


• Easily serviceable - Reduces down-time and inconvenience to end users


• Delayed start up and run on settings - Easy to set up and configure ensuring full drainage of shower tray


• Compact with the pump and controller enclosed in one unit - Ideal for bathrooms with limited space


• Flow meter input - Pump automatically adjusts to the variation of water supply


• Internal TGA fuse -


• Max flow rate 20 litres/min - Suitable for electric and mixer showers


• Suitable for use with wide range of electric and/or mixer showers including AKW, Mira, Triton and other brands - Compatibility with electric and mixer showers enables greater flexibility based on the individual needs of the user


• Non-handed unit - Pump head can be rotated to allow flow in either direction


• Reversible pump head features four valves with flap valve and bowl design - Pump head design allows for better removal of debris and installation of inlet pipework from either left or right


• Pump head can be rotated - Allows flow in either direction


• A hard-wired connection can be made to the flow sensor of an iTherm electric shower and many other brands, but also this offers a wireless connection to the flow sensor within AKW SmartCare Plus® and Smart Care® Lever electric showers - Wired or wireless connections offer the installer flexibility when fitting, as this can be tailored to the space, with wireless connections eradicating the need for post-installation decorative work

Product contents

2 x John Guest in-line 15mm connector

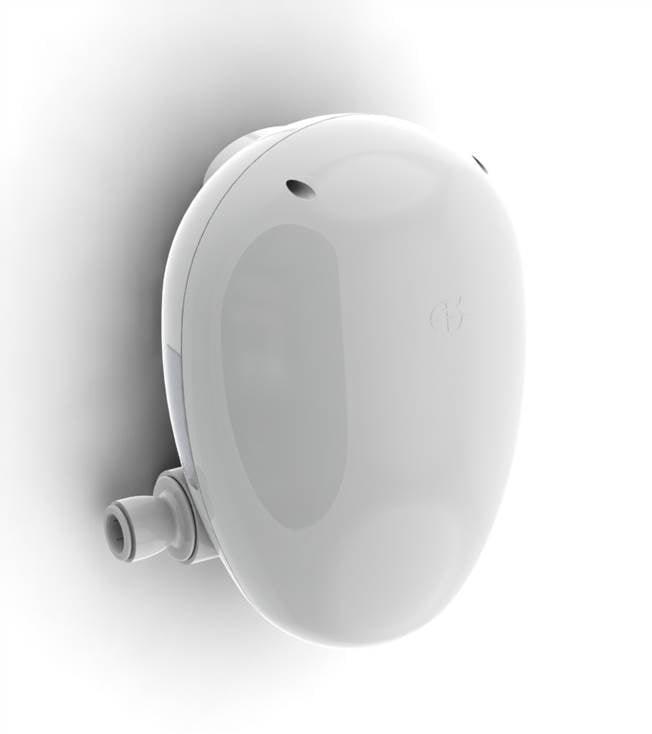

1 x M20 DigiPump - Component Part
1 x Brass Body 15mm Compression Fitting Y Filter

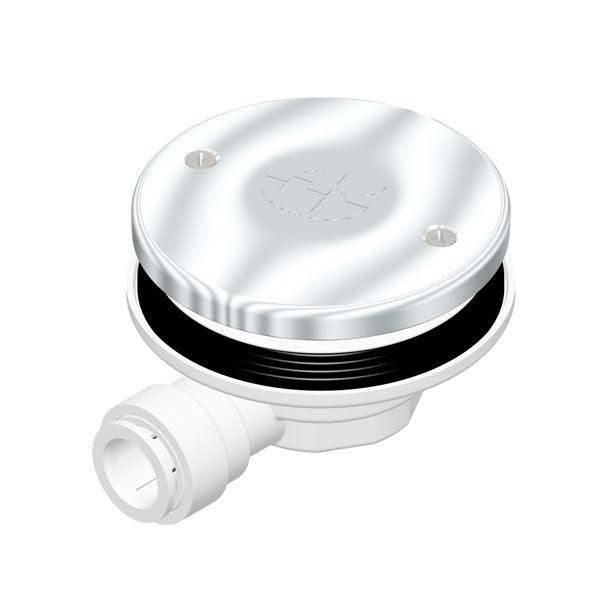

1 x PW90 22mm JG Pumped Waste
1 x DigiPump Flow Sensor

SKU: 25483
