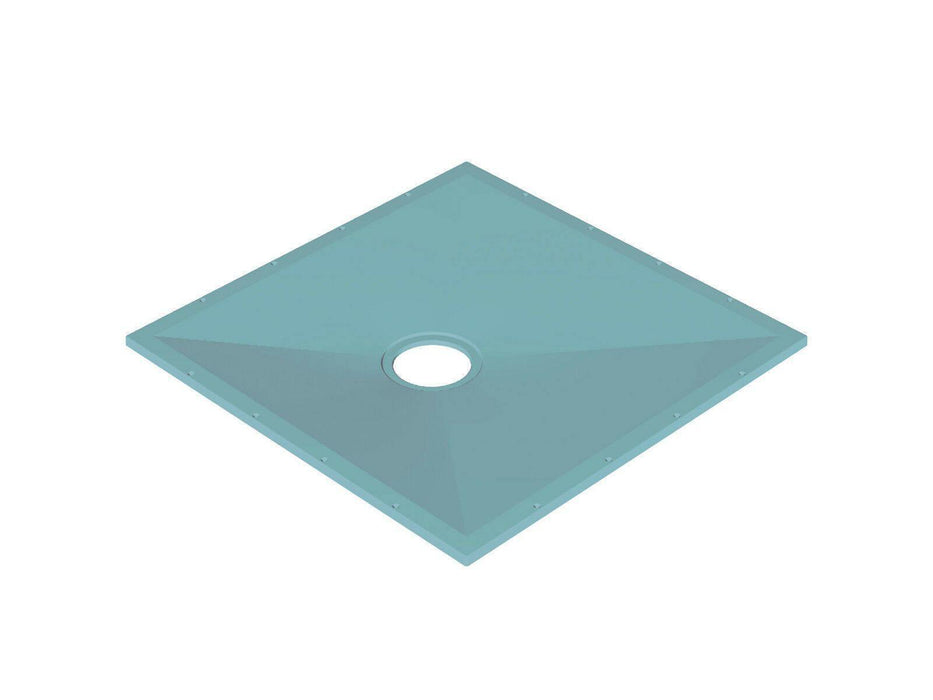

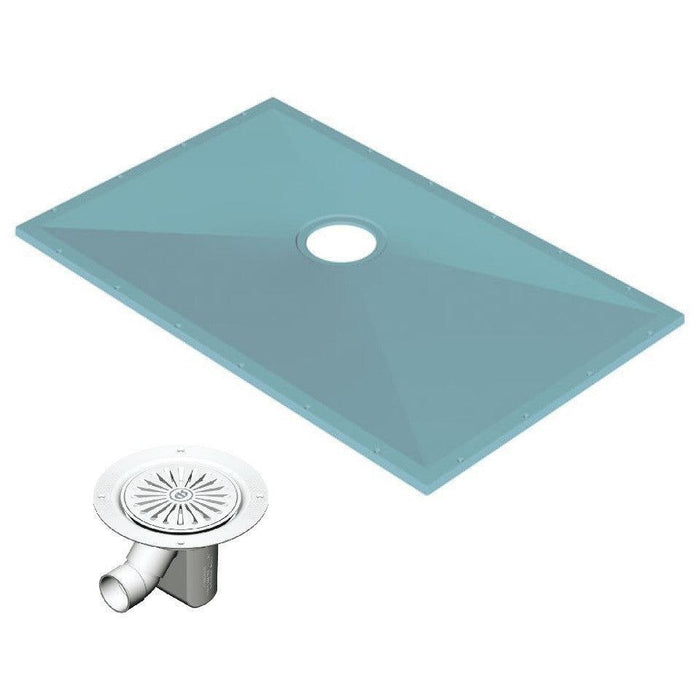

AKW Tuff Form Wetroom Former with TF75 Gravity Waste for Vinyl Flooring

Key Features and Benefits

Easy to install, this former is designed to provide a ‘Bathroom for Life’.

• Tuff Form® is the first product in its market sector to have a carbon footprint assessed to the PAS 2050 specification and has undergone verification by the Carbon Trust
• Tuff Form® has achieved a European Fire Safety Rating of CFI-s2
• Tuff Form® is 5 times more durable than recycled plastic formers when side transferring a 60 stone person, avoiding possible replacement 5 times in the same life cycle
• Tuff Form® will not warp or deform by temperatures reached in a normal bathroom situation (and has been tested to 100°C)
• Tuff Form® is widely used in the US and has been tested to ANSI Z124.1.2-2005
• Can be cut to within 150mm of the waste without compromising strength or water integrity

• Hundreds of thousands of Tuff Forms® have been installed across the world
• Formed from compressed GRP for exceptional strength and stability (Tuff Form® former)

Specifications

• 22mm depth of tray
• Waste hole diameter 160mm
• Maximum weight capacity 60 stone / 381kg
• Pre-formed fixing holes
• Offset waste position to avoid joists/pipework
• Suitable for both wooden and concrete installations
• The ribbed design on the underside eliminates slippage or float during installations
• Ideal for fitting under the bath in multi-tenant dwellings
• If tiling over the Tuff Form must use Stainless Steel waste option
• 100% recyclable

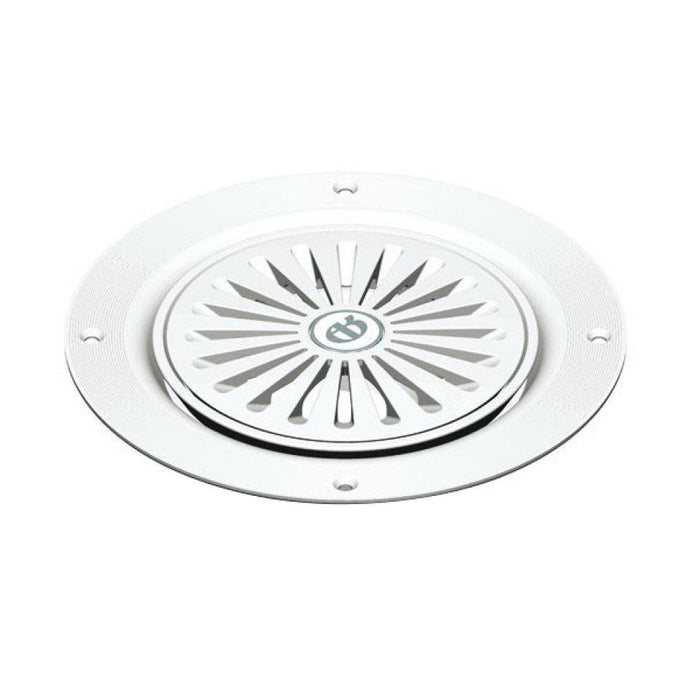

TF75 Gravity Waste:

• Universal solvent socket joint for vertical or horizontal outlets]
• Can be used with any altro flooring, tiles or screed
• Low maintenance and reliable operation
• Bayonet or screw down waste for easy cleaning and rodding
• Made from ABS plastic and nitrile rubber
• 75mm water seal trapped waste for wet floors
• Patented design: GB2402946
• Tested to BS EN 274 Part 2: 2002
